Interactive Dashboards

In this blog post, I want to outline my upcoming Princeton Wintersession workshop Interactive Dashboards for Collaborative Communication. In this workshop, we will explore the new technology called Quarto dashboards. In this exploration, I have chosen a different data set per my interest, but much of the credit for the design of this workshop goes to the folks at Posit and other data scientists who have already created wonderful tutorials (see Additional Resources).

Dashboards

Examples from Posit

Why R?

library("bslib")
library("bsicons")
library("sf")
library("tidyverse")

bee_data <- readr::read_csv("bee_data.csv")
states_shp <- readr::read_rds("us_states_shp.rds")

color_1 <- "#E77500"
color_2 <- "#121212"

Why Quarto?

Posit Cloud

Case Study: Bees!

Concern for Bee Populations

Data Source

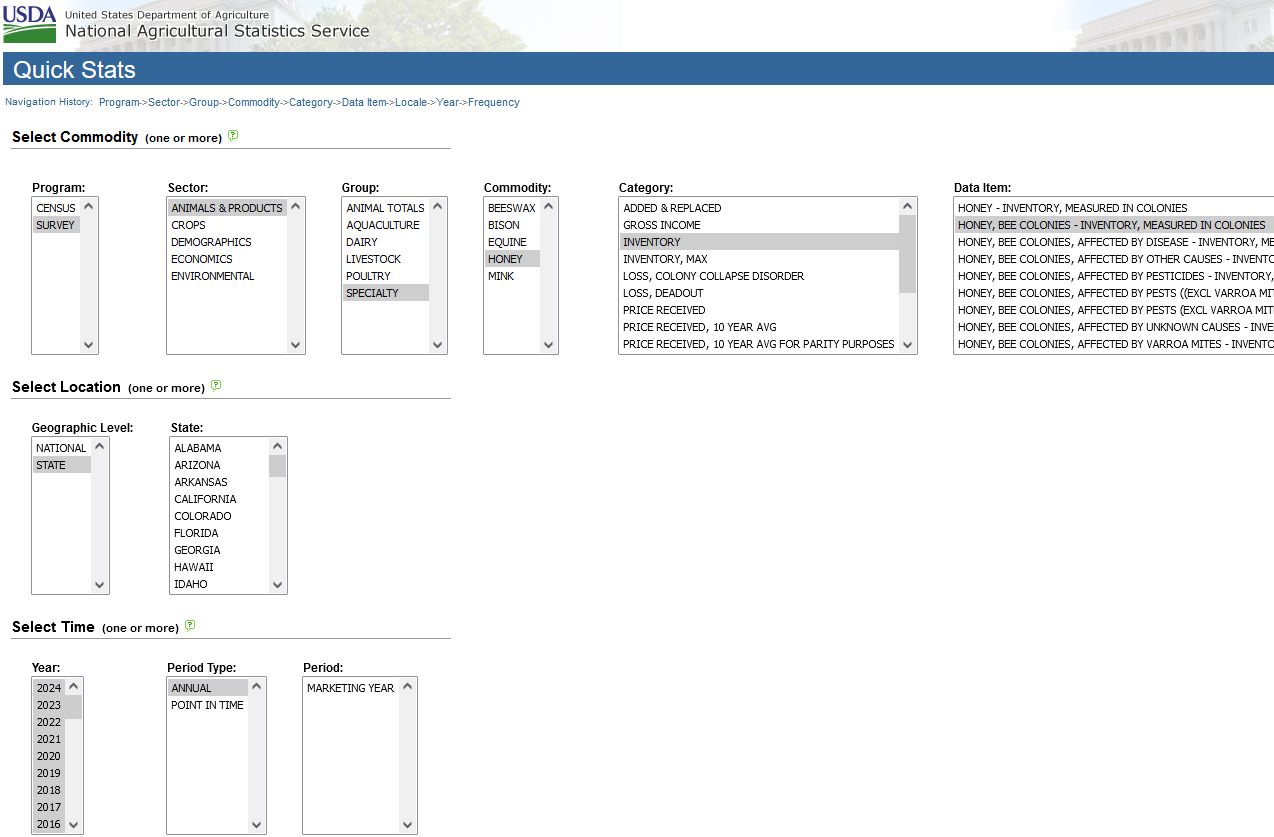

Our data come from the Quick Stats at USDA NASS (United States Department of Agriculture National Agricultural Statistics Service). Users can access a subset of the data through dropdown menus. For replicability, I list my selections below:

Commodity:
- Program: SURVEY
- Sector: ANIMALS & PRODUCTS
- Group: SPECIALTY
- Commodity: HONEY
- Category: INVENTORY
- Data item: HONEY, BEE COLONIES - INVENTORY, MEASURED IN COLONIES
Location:
- Geographic Level: STATE
- State: [leave unselected for all states]
Time:
- Year: [selected 2014 to 2024 to obtain about a decade of data]
- Period Type: ANNUAL (note: the “annual” measurements were done by each state, while other granularity might not be available for all states)
- Period: MARKETING YEAR

Bar Charts

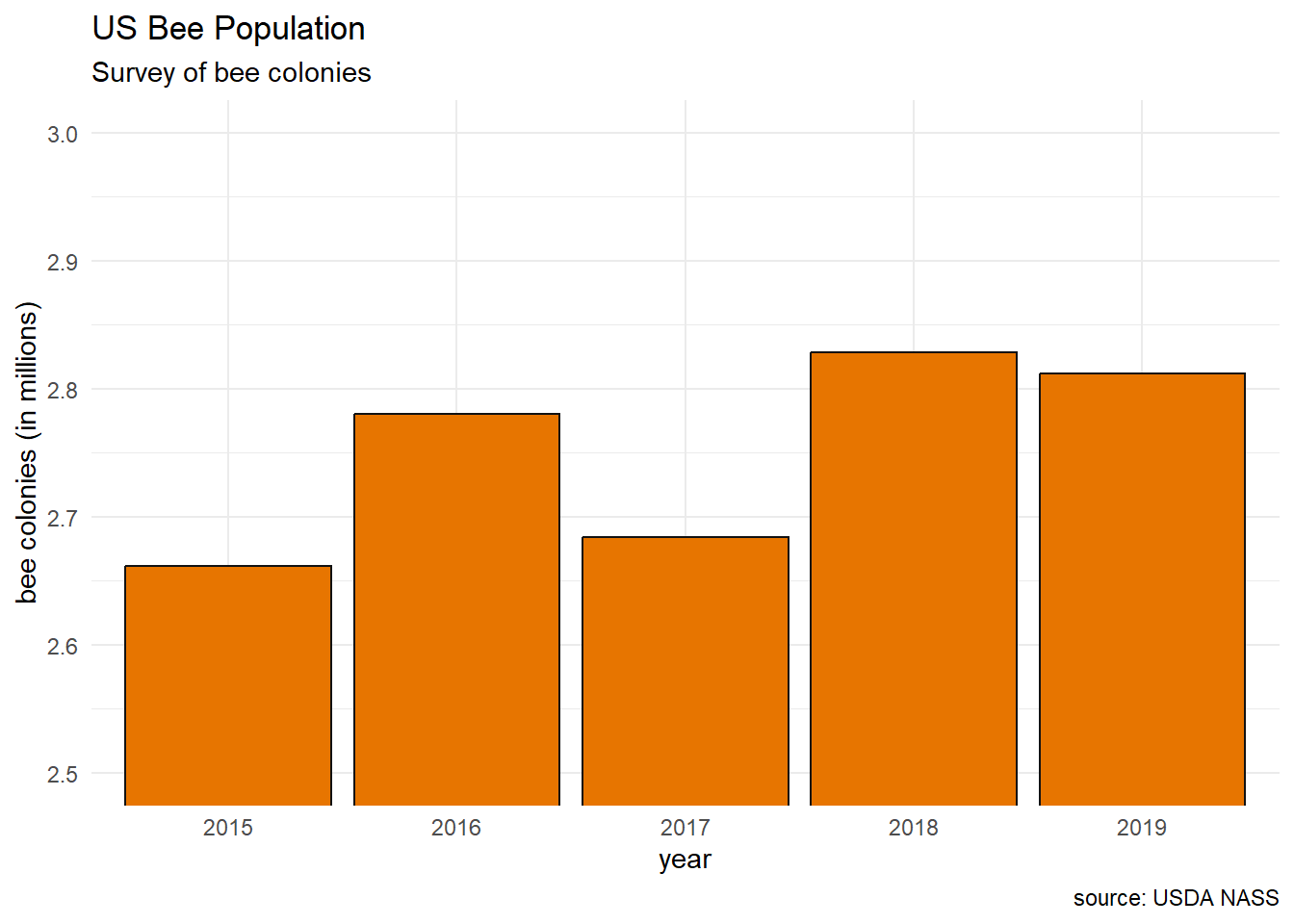

bee_data |>
  group_by(Year) |>
  mutate(total_colonies = sum(Value)) |>
  ungroup() |>
  select(Year, total_colonies) |>
  distinct() |>
  mutate(num_colonies = total_colonies / 1e6) |>
  ggplot(aes(x = factor(Year), y = num_colonies)) +
  geom_bar(color = "#121212", fill = "#E77500",
           stat = "identity") +
  coord_cartesian(ylim = c(2.5,3.0)) +
  labs(title = "US Bee Population",
       subtitle = "Survey of bee colonies",
       # caption = "source: USDA NASS",
       x = "year",
       y = "bee colonies (in millions)") +
  theme_minimal()

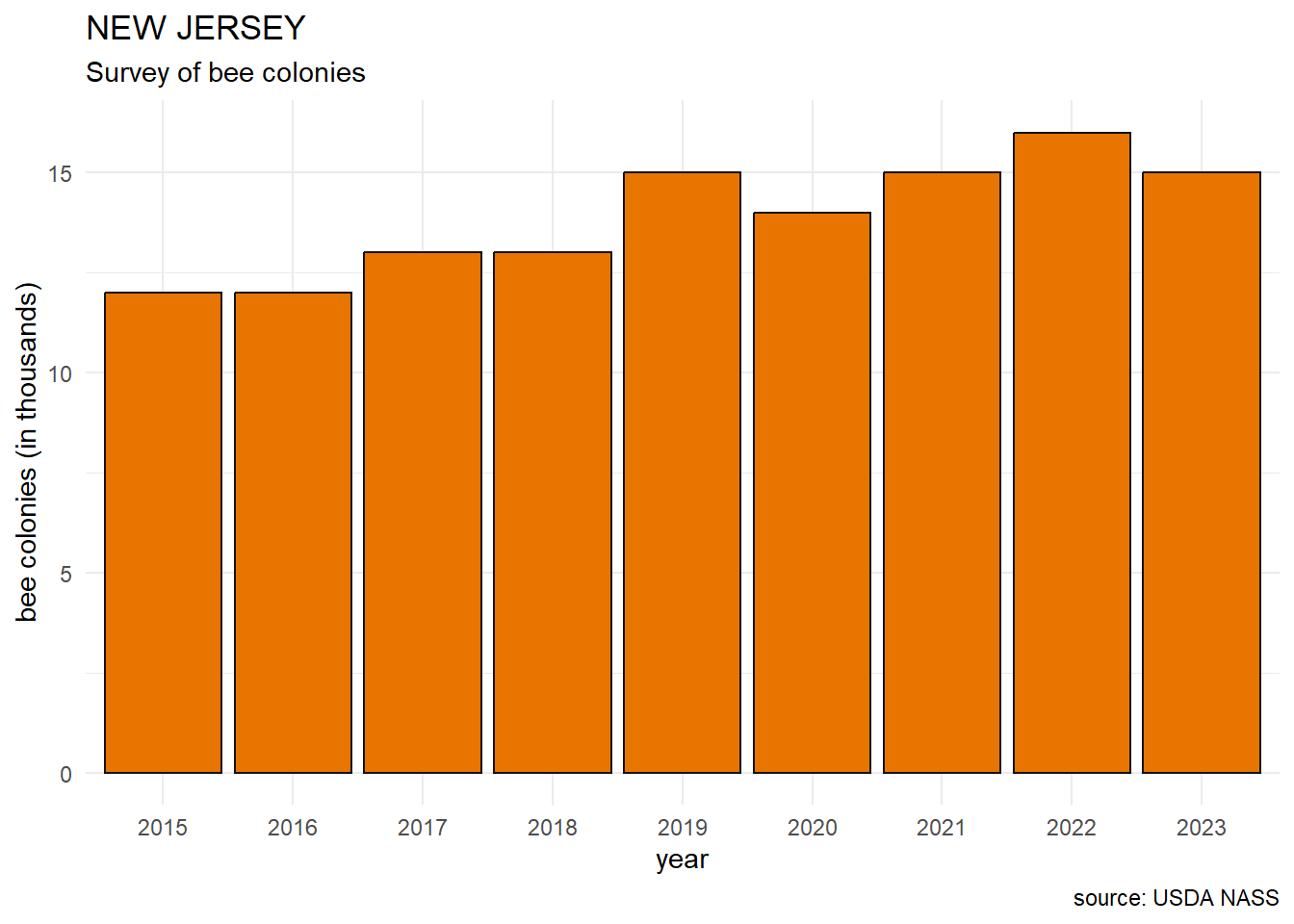

nj_plot <- bee_data |>
  filter(State == "NEW JERSEY") |>
  mutate(num_colonies = Value / 1e3) |>
  ggplot(aes(x = factor(Year), y = num_colonies)) +
  geom_bar(color = "#121212", fill = "#E77500",
           stat = "identity") +
  labs(title = "NEW JERSEY",
       subtitle = "Survey of bee colonies",
       caption = "source: USDA NASS",
       x = "year",
       y = "bee colonies (in thousands)") +
  theme_minimal()

nj_plot

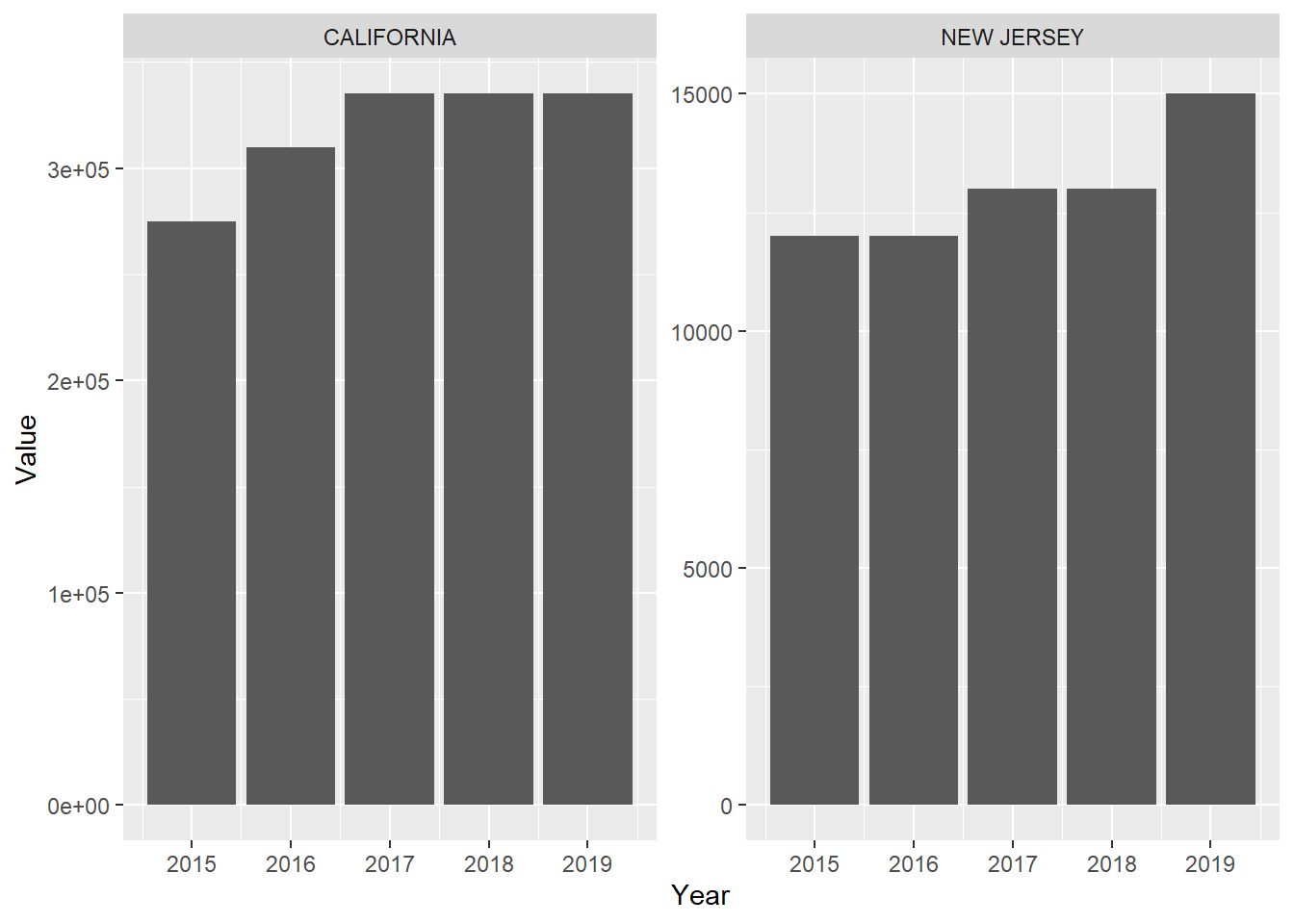

bee_data |>
  filter(Year >= 2015 & Year <= 2019) |>
  filter(State %in% c("CALIFORNIA", "NEW JERSEY")) |>
  ggplot(aes(x = Year, y = Value)) +
  facet_wrap(vars(State), scales = "free_y") +
  geom_bar(stat = "identity")

Maps

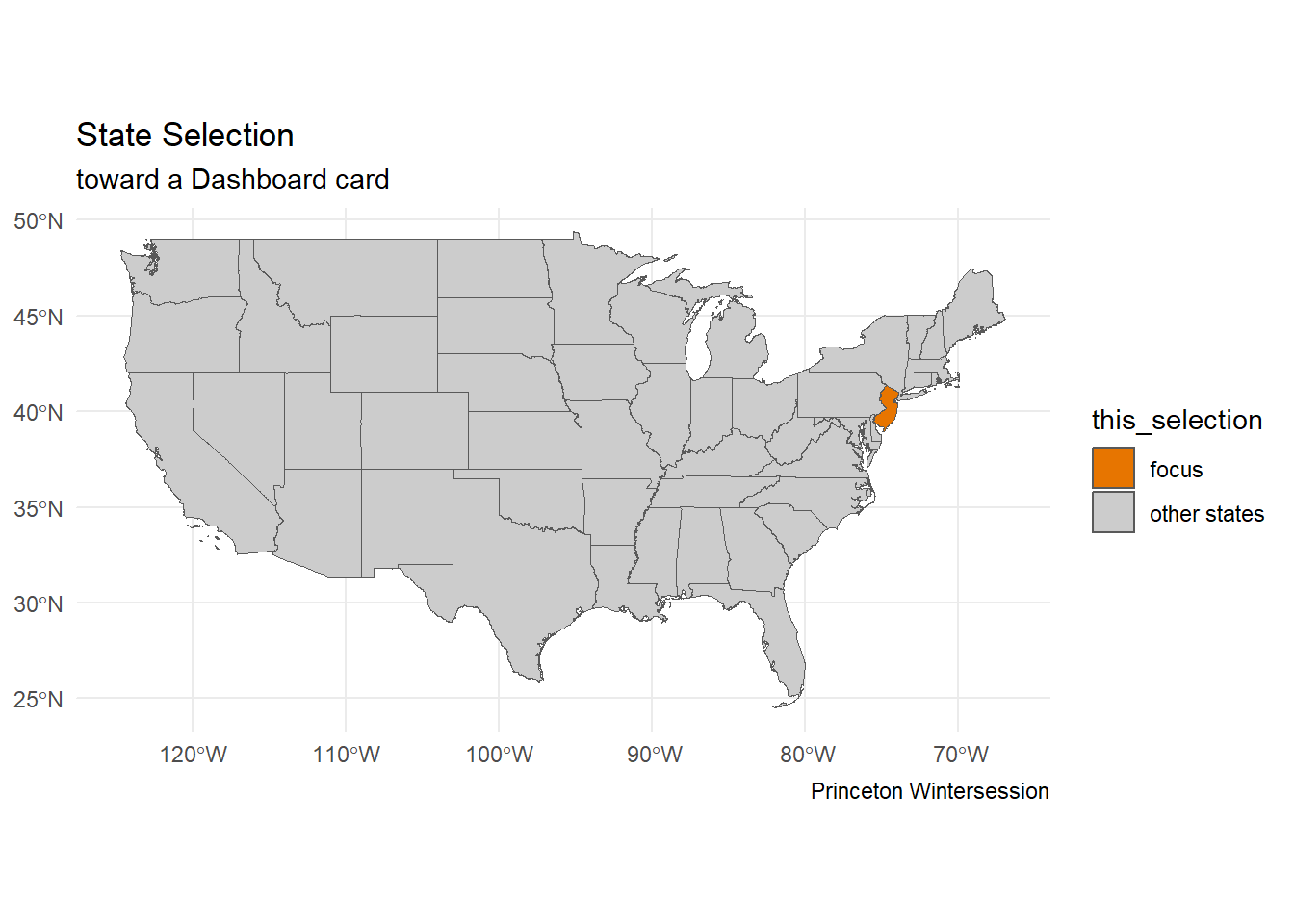

states_shp |>
  mutate(this_selection = ifelse(NAME == "New Jersey",
                               "focus", "other states")) |>
  ggplot() +
  geom_sf(aes(fill = this_selection)) +
  labs(title = "State Selection",
         subtitle = "toward a Dashboard card",
         caption = "Princeton Wintersession") +
  scale_fill_manual(values = c(color_1, "gray80")) +
  theme_minimal()

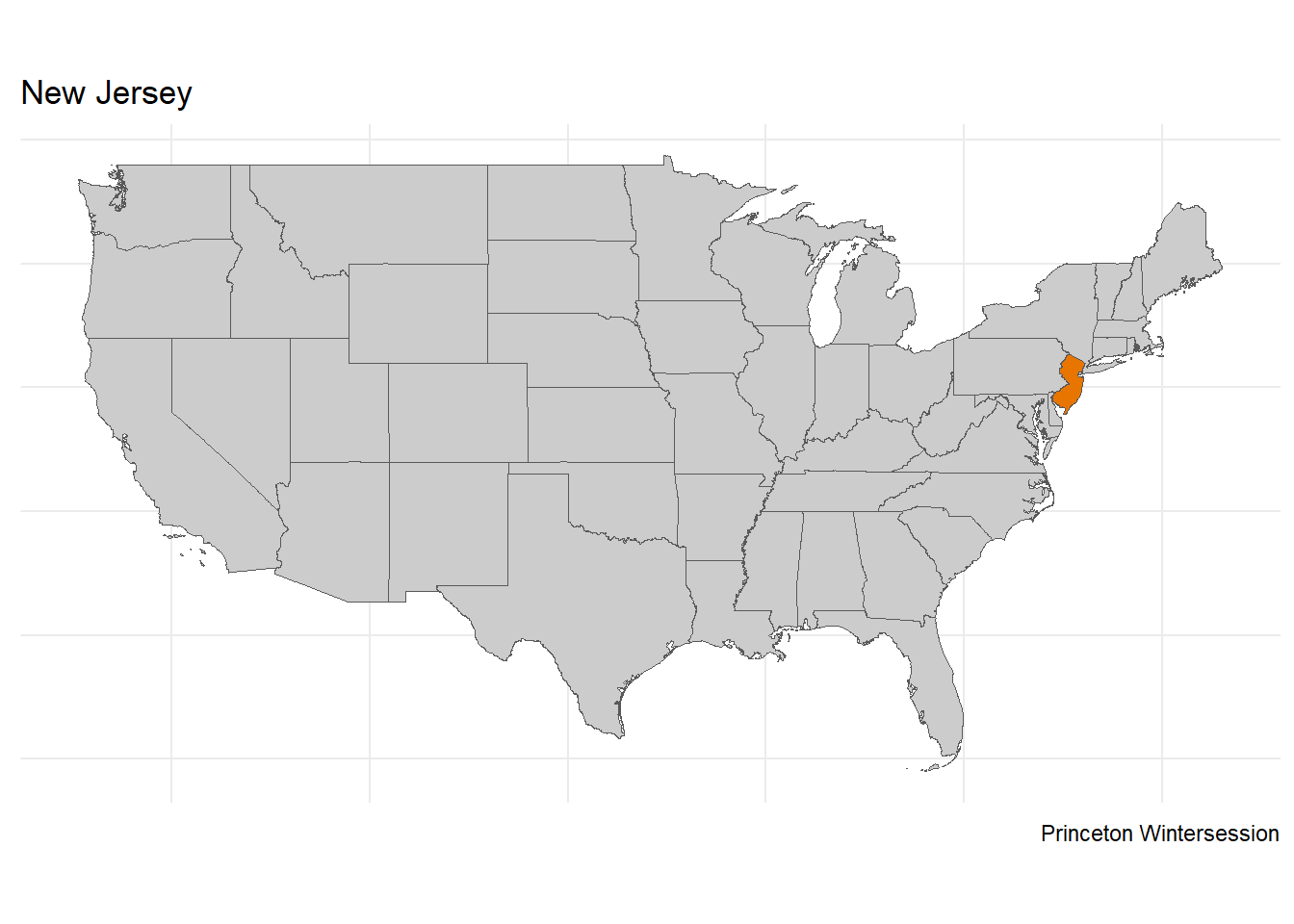

nj_map <- states_shp |>
  mutate(this_selection = ifelse(NAME == "New Jersey",
                               "focus", "other states")) |>
  ggplot() +
  geom_sf(aes(fill = this_selection)) +
  labs(title = "New Jersey",
         # subtitle = "toward a Dashboard card",
         caption = "Princeton Wintersession") +
  scale_fill_manual(values = c(color_1, "gray80")) +
  theme_minimal() +
  theme(axis.title.x = element_blank(),
        axis.text.x  = element_blank(),
        axis.ticks.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y  = element_blank(),
        axis.ticks.y = element_blank(),
        legend.position = "none")

nj_map

Setup (YAML)

In a Posit Cloud session, create a new Quarto document, and then change the format to dashboard.

---
title: "My Dashboard"
format: dashboard
---

# notebook content goes here...

Layout

Cards

Each additional visible object is arranged into the dashboard as a card.

Rows

By default, the arrangement of the cards is in rows.

nj_plot

nj_map

Columns

To change the arrangements into columns, change the YAML header

format:
  dashboard:
    orientation: columns

More specifically, our file will use

first-level headers (#) for tabs
second-level headers (##) for columns
third-level headers (###) for rows

Value Boxes

::: {.valuebox icon="award-fill" color="#E77500"}
NEW JERSEY
:::

Of importance, for a valuebox to appear and function as intended, the R code needs to output a value.

Sidebar

# {.sidebar}

Instructions to user goes here

Heights and Widths

At the desired header, use commands like

{height = "25%"}
{width = "30%"}

Interactivity

Inputs

Let the user pick the state. Place the following code into the sidebar.

selectInput(
  "state_choice",
  "Choose a state:",
  choices = unique(bee_data$State)
)

Let the user pick the year. Place the following code into the sidebar.

sliderInput(
  "year_choice", "Choose a year:",
  min = 2015, max = 2023, step = 1,
  value = 2023,
)

Server

Now, we need use the shiny framework to perform these computations in a reactive way. Create the following code chunk, and be sure to set #| context: server.

#| context: server
output$state_plot <- renderPlot({
  bee_data |>
  filter(State == input$state_choice) |>
  mutate(num_colonies = Value / 1e3) |>
  mutate(year_color = ifelse(Year == input$year_choice,
         TRUE, FALSE)) |>
  ggplot(aes(x = factor(Year), y = num_colonies)) +
  geom_bar(aes(fill = year_color),
           color = "#121212", ,
           stat = "identity") +
  labs(title = paste0(str_to_title(input$state_choice)),
       subtitle = "Survey of bee colonies",
       caption = "source: USDA NASS",
       x = "year",
       y = "bee colonies (in thousands)") +
  scale_fill_manual(values = c("#121212", "#E77500")) +
  theme_minimal() +
  theme(legend.position = "none")
})

output$state_map <- renderPlot({
  states_shp |>
    mutate(this_selection = ifelse(
      NAME == str_to_title(input$state_choice),
      "focus", "other states")) |>
    ggplot() +
    geom_sf(aes(fill = this_selection)) +
    labs(title = paste0(str_to_title(input$state_choice)),
         caption = "Princeton Wintersession") +
    scale_fill_manual(values = c(color_1, "gray80")) +
    theme_minimal() +
    theme(axis.title.x = element_blank(),
          axis.text.x  = element_blank(),
          axis.ticks.x = element_blank(),
          axis.title.y = element_blank(),
          axis.text.y  = element_blank(),
          axis.ticks.y = element_blank(),
          legend.position = "none")
})

output$num_colonies <- renderText({
  bee_data |>
    filter(State == input$state_choice) |>
    filter(Year == input$year_choice) |>
    pull(Value)
})

output$state_choice <- renderText({input$state_choice})
output$year_choice <- renderText({input$year_choice})

Plots

Now we have have the output in place, we can use more shiny code to plot that output. Where the barchart code was intended to be, place the following

plotOutput("state_plot")

Do something similar for the geographic map.

Valueboxes

Now we have have the output in place, we can use more shiny code to display certain numbers. Inside the valueboxes’ divs, place the following

r textOutput("state_choice")

r textOutput("year_choice")

Do something similar for the number of bee colonies.

Additional Resources

For this workshop, I followed the materials presented by Mine Cetinkaya-Rundel and Posit

Folks that are interested in learning more about Quarto Dashboards can refer to resources such as the following:

How to Automate your Reporting by Isabella Velasquez
Easy Dashboards by The GRAPH Courses
Interactive Infographic using DisplayR by Melisaa Van Bussel
Quarto Dashboards by Charles Teague
Quarto Dashboards by Isabella Velasquez
How to Style your Quarto docs without HTML & CSS by Albert Rapp
Beyond Dashboards by Sean Nguyen
